FormationMovementGenerator Class Reference

#include "FormationMovementGenerator.h"

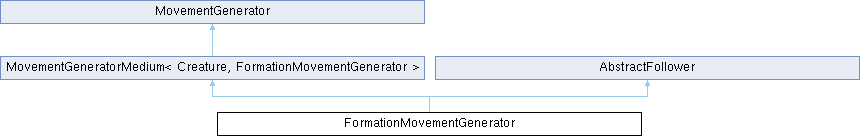

Inheritance diagram for FormationMovementGenerator:

Public Member Functions
	FormationMovementGenerator (Unit *leader, float range, float angle, uint32 point1, uint32 point2)
MovementGeneratorType	GetMovementGeneratorType ()
void	DoInitialize (Creature *)
void	DoFinalize (Creature *)
void	DoReset (Creature *)
bool	DoUpdate (Creature *, uint32)
Public Member Functions inherited from MovementGeneratorMedium< Creature, FormationMovementGenerator >
void	Initialize (Unit *u) override
void	Finalize (Unit *u) override
void	Reset (Unit *u) override
bool	Update (Unit *u, uint32 time_diff) override
Public Member Functions inherited from MovementGenerator
virtual	~MovementGenerator ()
virtual uint32	GetSplineId () const
virtual void	unitSpeedChanged ()
virtual void	Pause (uint32)
virtual void	Resume (uint32)
virtual bool	GetResetPosition (float &, float &, float &)
Public Member Functions inherited from AbstractFollower
	AbstractFollower (Unit *target=nullptr)
virtual	~AbstractFollower ()
void	SetTarget (Unit *unit)
Unit *	GetTarget () const

Private Member Functions
void	MovementInform (Creature *owner)
void	LaunchMovement (Creature *owner, Unit *target)

Private Attributes
float const	_range
float	_angle
uint32 const	_point1
uint32 const	_point2
uint32	_lastLeaderSplineID
bool	_hasPredictedDestination
bool	_isMoving
Position	_lastLeaderPosition
TimeTracker	_nextMoveTimer

Static Private Attributes
static constexpr uint32	FORMATION_MOVEMENT_INTERVAL = 1200

Detailed Description

Constructor & Destructor Documentation

FormationMovementGenerator()

FormationMovementGenerator::FormationMovementGenerator ( Unit *  leader, float  range, float  angle, uint32  point1, uint32  point2  )

explicit

    : AbstractFollower(leader), _range(range), _angle(angle), _point1(point1), _point2(point2), _lastLeaderSplineID(0),
    _hasPredictedDestination(false), _isMoving(false), _nextMoveTimer(0)
{
}

Member Function Documentation

DoFinalize()

void FormationMovementGenerator::DoFinalize

(

Creature *

owner

)

{
    owner->ClearUnitState(UNIT_STATE_FOLLOW_MOVE);
}

References Unit::ClearUnitState(), and UNIT_STATE_FOLLOW_MOVE.

DoInitialize()

void FormationMovementGenerator::DoInitialize

(

Creature *

owner

)

{
    if (owner->HasUnitState(UNIT_STATE_NOT_MOVE) || owner->IsMovementPreventedByCasting())
    {
        owner->StopMoving();
        return;
    }

    _nextMoveTimer.Reset(0);
}

References _nextMoveTimer, Unit::HasUnitState(), Creature::IsMovementPreventedByCasting(), TimeTracker::Reset(), Unit::StopMoving(), and UNIT_STATE_NOT_MOVE.

Referenced by DoReset().

DoReset()

void FormationMovementGenerator::DoReset

(

Creature *

owner

)

{
    DoInitialize(owner);
}

References DoInitialize().

DoUpdate()

bool FormationMovementGenerator::DoUpdate	(	Creature *	owner,
		uint32	diff
	)

{
    Unit* target = GetTarget();
    if (!owner || !target)
        return false;

    if (owner->HasUnitState(UNIT_STATE_NOT_MOVE) || owner->IsMovementPreventedByCasting())
    {
        owner->StopMoving();
        _nextMoveTimer.Reset(0);
        _hasPredictedDestination = false;
        _isMoving = false;
        return true;
    }

    if (target->movespline->Finalized() && target->movespline->GetId() == _lastLeaderSplineID && _hasPredictedDestination)
    {
        owner->StopMoving();
        _nextMoveTimer.Reset(0);
        _hasPredictedDestination = false;
        _isMoving = false;
        return true;
    }

    if (!owner->movespline->Finalized())
        owner->SetHomePosition(owner->GetPosition());

    if (!target->movespline->Finalized() && target->movespline->GetId() != _lastLeaderSplineID)
    {
        if (_point1 && target->IsCreature())
        {
            if (CreatureGroup* formation = target->ToCreature()->GetFormation())
            {
                if (Creature* leader = formation->GetLeader())
                {
                    uint32 currentWaypoint = leader->GetCurrentWaypointID() + 1;
                    if (currentWaypoint == _point1 || currentWaypoint == _point2)
                        _angle = Position::NormalizeOrientation(float(2 * M_PI) - _angle);
                }
            }
        }

        LaunchMovement(owner, target);
        _lastLeaderSplineID = target->movespline->GetId();
        return true;
    }

    _nextMoveTimer.Update(diff);
    if (_nextMoveTimer.Passed())
    {
        _nextMoveTimer.Reset(FORMATION_MOVEMENT_INTERVAL);

        if (_lastLeaderPosition != target->GetPosition())
        {
            LaunchMovement(owner, target);
            return true;
        }
    }

    if (_isMoving && owner->movespline->Finalized())
    {
        _isMoving = false;
        owner->SetFacingTo(target->GetOrientation());
        MovementInform(owner);
    }

    return true;
}

References _angle, _hasPredictedDestination, _isMoving, _lastLeaderPosition, _lastLeaderSplineID, _nextMoveTimer, _point1, _point2, Movement::MoveSpline::Finalized(), FORMATION_MOVEMENT_INTERVAL, Creature::GetFormation(), Movement::MoveSpline::GetId(), Position::GetOrientation(), Position::GetPosition(), AbstractFollower::GetTarget(), Unit::HasUnitState(), Object::IsCreature(), Creature::IsMovementPreventedByCasting(), LaunchMovement(), MovementInform(), Unit::movespline, Position::NormalizeOrientation(), TimeTracker::Passed(), TimeTracker::Reset(), Unit::SetFacingTo(), Creature::SetHomePosition(), Unit::StopMoving(), Object::ToCreature(), UNIT_STATE_NOT_MOVE, and TimeTracker::Update().

GetMovementGeneratorType()

MovementGeneratorType FormationMovementGenerator::GetMovementGeneratorType ( )

inlinevirtual

Implements MovementGenerator.

{ return FORMATION_MOTION_TYPE; }

References FORMATION_MOTION_TYPE.

LaunchMovement()

void FormationMovementGenerator::LaunchMovement ( Creature *  owner, Unit *  target  )

private

{
    float relativeAngle = 0.0f;

    if (!target->movespline->Finalized())
    {
        G3D::Vector3 const leaderDestination = target->movespline->CurrentDestination();
        relativeAngle = target->GetRelativeAngle(leaderDestination.x, leaderDestination.y);
    }

    Position dest = target->GetPosition();
    float velocity = 0.0f;

    if (!target->movespline->Finalized())
    {
        // Pick up leader's spline velocity
        velocity = target->movespline->Velocity();

        // Calculate travel distance to get a 1650ms result
        float travelDist = velocity * 1.65f;
        target->MovePositionToFirstCollision(dest, travelDist, relativeAngle);
        target->MovePositionToFirstCollision(dest, _range, _angle + relativeAngle);

        float distance = owner->GetExactDist(dest);
        float velocityMod = std::min<float>(distance / travelDist, 1.5f);

        velocity *= velocityMod;
        _hasPredictedDestination = true;
    }
    else
    {
        target->MovePositionToFirstCollision(dest, _range, _angle + relativeAngle);
        _hasPredictedDestination = false;
    }

    if (velocity == 0.0f)
        velocity = target->GetSpeed(MOVE_WALK);

    Movement::MoveSplineInit init(owner);
    init.MoveTo(dest.GetPositionX(), dest.GetPositionY(), dest.GetPositionZ());
    init.SetVelocity(velocity);
    init.Launch();

    _lastLeaderPosition.Relocate(target->GetPosition());
    _isMoving = true;
    owner->AddUnitState(UNIT_STATE_FOLLOW_MOVE);
}

References _angle, _hasPredictedDestination, _isMoving, _lastLeaderPosition, _range, Unit::AddUnitState(), Movement::MoveSpline::CurrentDestination(), Movement::MoveSpline::Finalized(), Position::GetExactDist(), Position::GetPosition(), Position::GetPositionX(), Position::GetPositionY(), Position::GetPositionZ(), Position::GetRelativeAngle(), Unit::GetSpeed(), Movement::MoveSplineInit::Launch(), MOVE_WALK, WorldObject::MovePositionToFirstCollision(), Unit::movespline, Movement::MoveSplineInit::MoveTo(), Position::Relocate(), Movement::MoveSplineInit::SetVelocity(), UNIT_STATE_FOLLOW_MOVE, and Movement::MoveSpline::Velocity().

Referenced by DoUpdate().

MovementInform()

void FormationMovementGenerator::MovementInform ( Creature *  owner )

private

{
    if (owner->AI())
        owner->AI()->MovementInform(FORMATION_MOTION_TYPE, 0);
}

References Creature::AI(), FORMATION_MOTION_TYPE, and CreatureAI::MovementInform().

Referenced by DoUpdate().

Member Data Documentation

_angle

float FormationMovementGenerator::_angle

private

Referenced by DoUpdate(), and LaunchMovement().

_hasPredictedDestination

bool FormationMovementGenerator::_hasPredictedDestination

private

Referenced by DoUpdate(), and LaunchMovement().

_isMoving

bool FormationMovementGenerator::_isMoving

private

Referenced by DoUpdate(), and LaunchMovement().

_lastLeaderPosition

Position FormationMovementGenerator::_lastLeaderPosition

private

Referenced by DoUpdate(), and LaunchMovement().

_lastLeaderSplineID

uint32 FormationMovementGenerator::_lastLeaderSplineID

private

Referenced by DoUpdate().

_nextMoveTimer

TimeTracker FormationMovementGenerator::_nextMoveTimer

private

Referenced by DoInitialize(), and DoUpdate().

_point1

uint32 const FormationMovementGenerator::_point1

private

Referenced by DoUpdate().

_point2

uint32 const FormationMovementGenerator::_point2

private

Referenced by DoUpdate().

_range

float const FormationMovementGenerator::_range

private

Referenced by LaunchMovement().

FORMATION_MOVEMENT_INTERVAL

constexpr uint32 FormationMovementGenerator::FORMATION_MOVEMENT_INTERVAL = 1200

staticconstexprprivate

Referenced by DoUpdate().

---

The documentation for this class was generated from the following files:

• azerothcore-wotlk/src/server/game/Movement/MovementGenerators/FormationMovementGenerator.h
• azerothcore-wotlk/src/server/game/Movement/MovementGenerators/FormationMovementGenerator.cpp
